Product Detail Description

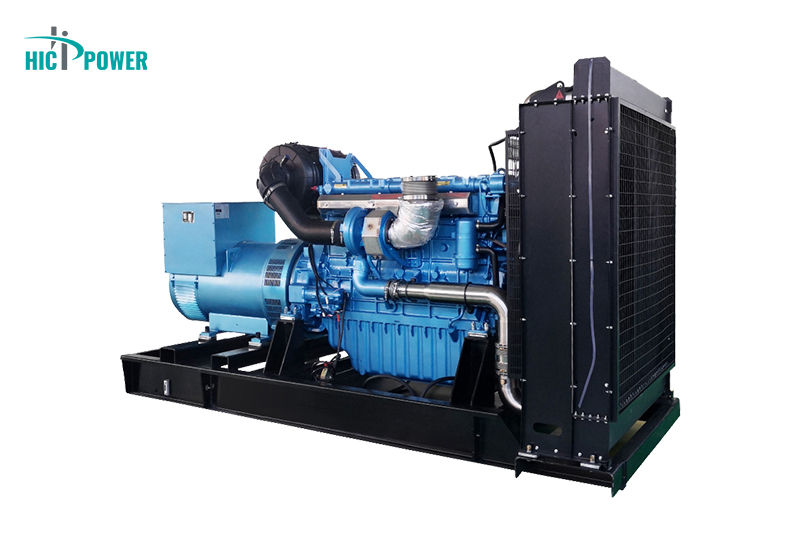

Baudouin diesel generator is one of the world's top branded engines, widely recognized worldwide.
We have all series from 20kVA to 4500kVA.
Application fields:
Diesel generators are used in any situation where reliable backup power is required to maintain operational continuity.
For example:
Healthcare, data centers, telecommunications, construction, manufacturing, oil and gas, military, residential electricity.
Technical Characteristics of Baudouin Diesel Engine:
Reliability, with a major overhaul period of up to 32000 hours.
Power performance: The engine's power performance meets the matching requirements of G3 level units and can exceed 50% load.
Economy, the lowest fuel consumption rate can reach 195g/kWh.
Convenience, using SAE standard interface, easy connection, adopting a single cylinder head, with a side observation window on the body, convenient maintenance and repair.
Adaptability to working conditions, using a three-stage fuel filter with standard water removal and reliable filtration, strong adaptability to oil products, strong low-temperature starting ability, can be started directly without auxiliary heating at -25 ° C, and can be optionally equipped with a dedicated desert filter, with a coarse filtration efficiency of up to 93% and strong adaptability to sand and dust.
Service networks in over 95 countries worldwide.
There are over 5000 service providers in China.
24/7, all-round, 24-hour service.
| Powered by CUMMINS | 440V,1800RPM,60Hz |
Genset
Model | Standby
kVA | Prime
kVA | Engine
Model | Alternator
Stamford | Dimension mm
Open Type | Dimension mm
Soundproof Type | Data PDF |
| HC-28GF2 | 33 | 30 | 4B3.9-G2 | S0L2-P1 | 1760*760*1380 | 2290*1060*1680 | Download |
| HC-40GF2 | 50 | 45 | 4BT3.9-G2 | S0L2-N1 | 1760*760*1380 | 2290*1060*1680 | Download |
| HC-65GF2 | 68 | 62.5 | 4BTA3.9-G2 | UCI224D1 | 1760*760*1380 | 2440*1060*1680 | Download |
| HC-70GF2 | 70 | 65 | 4BTA3.9-G2 | SIL2-Y1 | 1760*760*1380 | 2440*1060*1680 | Download |
| HC-75GF2 | 77 | 70 | 4BTA3.9-G11 | UCI224E1 | 1760*760*1380 | 2440*1060*1680 | Download |
| HC-80GF2 | 95 | 85 | 4BTA3.9-G11 | UCI224F1 | 1760*760*1380 | 2440*1060*1680 | Download |
| HC-90GF2 | 100 | 90 | 4BTA3.9-G11 | UCI224G1 | 1760*760*1380 | 2600*1060*1680 | Download |
| HC-105GF2 | 120 | 110 | 6BT5.9-G2 | UCI274C1 | 2300*830*1700 | 2810*1140*1830 | Download |
| HC-110GF2 | 132 | 120 | 6BT5.9-G2 | UCI274D1 | 2300*830*1700 | 2810*1140*1830 | Download |
| HC-125GF2 | 145 | 130 | 6BTA5.9-G2 | UCI 274D1 | 2300*830*1700 | 3230*1170*1800 | Download |
| HC-142GF2 | 156 | 145 | 6BTAA5.9-G2 | UCI274E1 | 2350*830*1700 | 3230*1170*1800 | Download |
| HC-170GF2 | 180 | 168 | 6BTAA5.9-G12 | UCI274E1 | 2390*860*1850 | 3230*1170*1800 | Download |
| HC-200GF2 | 212 | 200 | 6CTA8.3-G2 | UCI274G1 | 2390*860*1850 | 3230*1170*1800 | Download |
| HC-220GF2 | 250 | 230 | 6CTAA8.3-G2 | UCI274H1 | 2450*960*1850 | 3590*1150*2050 | Download |
| HC-275GF2 | 275 | 250 | 6LTAA8.9-G2 | UCDI 274J1 | 2500*960*1850 | 3590*1150*2050 | Download |
| HC-300GF2 | 306 | 280 | 6LTAA8.9-G3 | UCDI 274J1 | 2500*960*1850 | 3590*1150*2050 | Download |
| HC-350GF2 | 330 | 300 | 6LTAA9.5-G1 | UCDI 274K1 | 2500*1060*1850 | 3590*1250*2050 | Download |
| HC-312GF2 | 344 | 310 | NTA855-G1 | S4L1D-C41 | 3020*1100*1850 | 4230*1460*2150 | Download |
| HC-360GF2 | 375 | 344 | NTA855-G1B | S4L1D-D41 | 3020*1100*1850 | 4230*1460*2150 | Download |
| HC-400GF2 | 435 | 400 | NTA855-G3 | S4L1D-E41 | 3020*1100*1850 | 4230*1460*2150 | Download |
| HC-440GF2 | 500 | 438 | KTA19-G2 | S4L1S-F41 | 3400*1258*2050 | 4630*1660*2250 | Download |
| HC-500GF2-500 | 550 | 500 | KTA19-G3 | S4L1D-F41 | 3400*1258*2050 | 4630*1660*2250 | Download |
| HC-500GF2-512 | 562 | 512 | KTA19-G3 | S4L1D-G41 | 3400*1258*2050 | 4630*1600*2250 | Download |
| HC-500GF2-DQ | 562 | 512 | KTA19-G3 | S4L1D-G41 | 3400*1258*2050 | 4630*1600*2250 | Download |
| HC-550GF2-G3A | 625 | 562 | KTA19-G3A | HCI 544D1 | 3400*1258*2050 | 4630*1660*2250 | Download |
| HC-550GF2-G4 | 625 | 562 | KTA19-G4 | HCI 544D1 | 3400*1258*2050 | 4630*1660*2250 | Download |
| HC-688GF2 | 750 | NA | KTAA19-G6A | S5L1D-E4 | 3650*1638*2050 | 5030*1860*2550 | Download |
| HC-700GF2 | 750 | 688 | QSK19-G5 | S5L1D-E4 | 3650*1638*2050 | 5030*1860*2550 | Download |
| HC-700GF2-Q | 850 | 775 | KT38-G | HCI 544F1 | 4550*2100*2320 | ISO 20'ft GP | Download |
| HC-825GF2 | 1000 | 910 | KTA38-G2 | S6L1D-C4 | 4550*2100*2320 | ISO 20'ft GP | Download |
| HC-1000GF2 | 1100 | 1000 | KTA38-G2A | S6L1D-D4 | 4550*2100*2320 | ISO 20'ft GP | Download |
| HC-1100GF2 | 1250 | 1125 | KTA38-G4 | S6L1D-E4 | 4750*2100*2320 | ISO 20'ft GP | Download |
| HC-1250GF2 | 1375 | NA | KTA38-G9 | S6L1D-F4 | 5000*2200*2500 | ISO 20'ft GP | Download |
| HC-1375GF2 | 1562 | 1420 | KTA50-G3 | S6L1D-G4 | 5000*2200*2500 | ISO 20'ft GP | Download |
| HC-1600GF2 | 1875 | 1600 | KTA50-G9 | S7L1D-C4 | 5820*2200*2800 | ISO 20'ft HQ | Download |
| HC-2500GF2 | 2500 | 2280 | QSK60-G6 | S7L1D-G41 |
| ISO 40'ft GP | Download |
Haichai Power Technology (Jiangsu) Co., Ltd. was established in 2015, backed by 10 years of comprehensive experience in the production, manufacturing, and sales of power generators.
Our factory covers an area of over 12,000 square meters, with an annual production capacity of more than 3,000 generator sets. We are equipped with 10 sets of production equipment, 5 dedicated production lines, and a team of over 200 skilled employees.













1. What is the delivery time?
2. Generally it will need 20-30days, depending on the different collaboration of the gensets.
3. What is the warranty of the gensets?
4. 10000 operating hr or 12 month, prior to which comes first.
5. Can we do our brand on the gensets?
6. Yes, it is possible. Pls give us the instructions for us before labelling or marking them.
