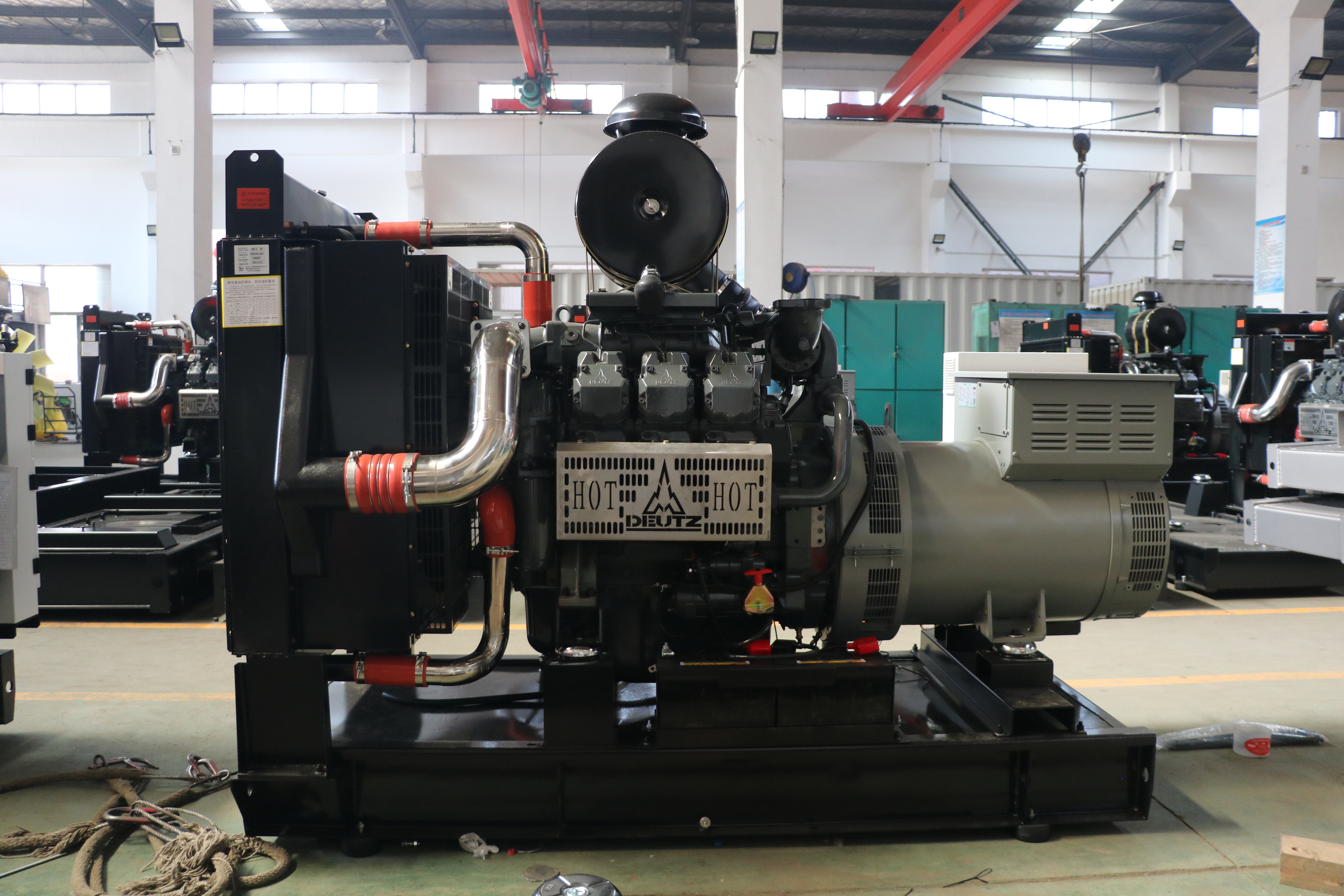

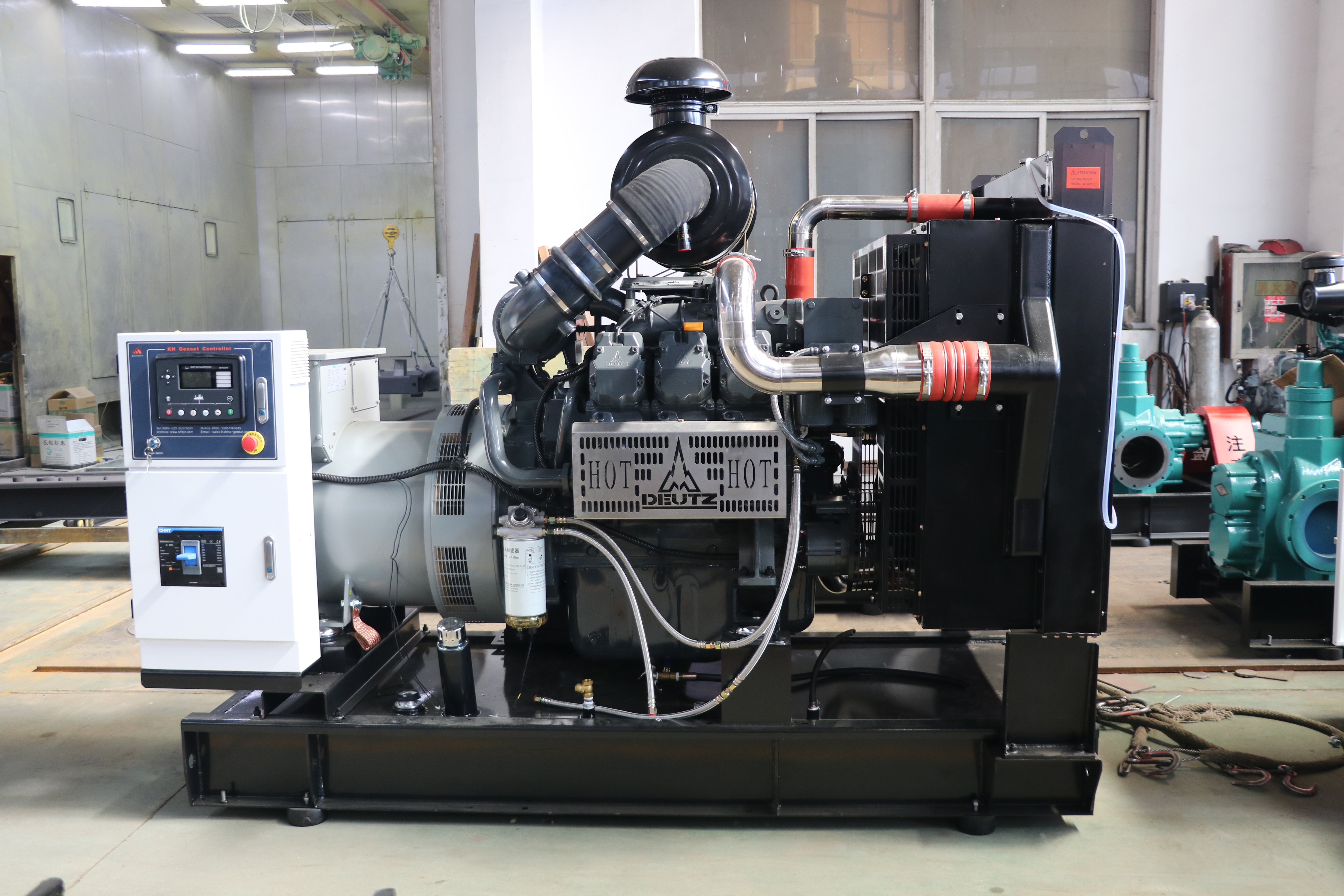

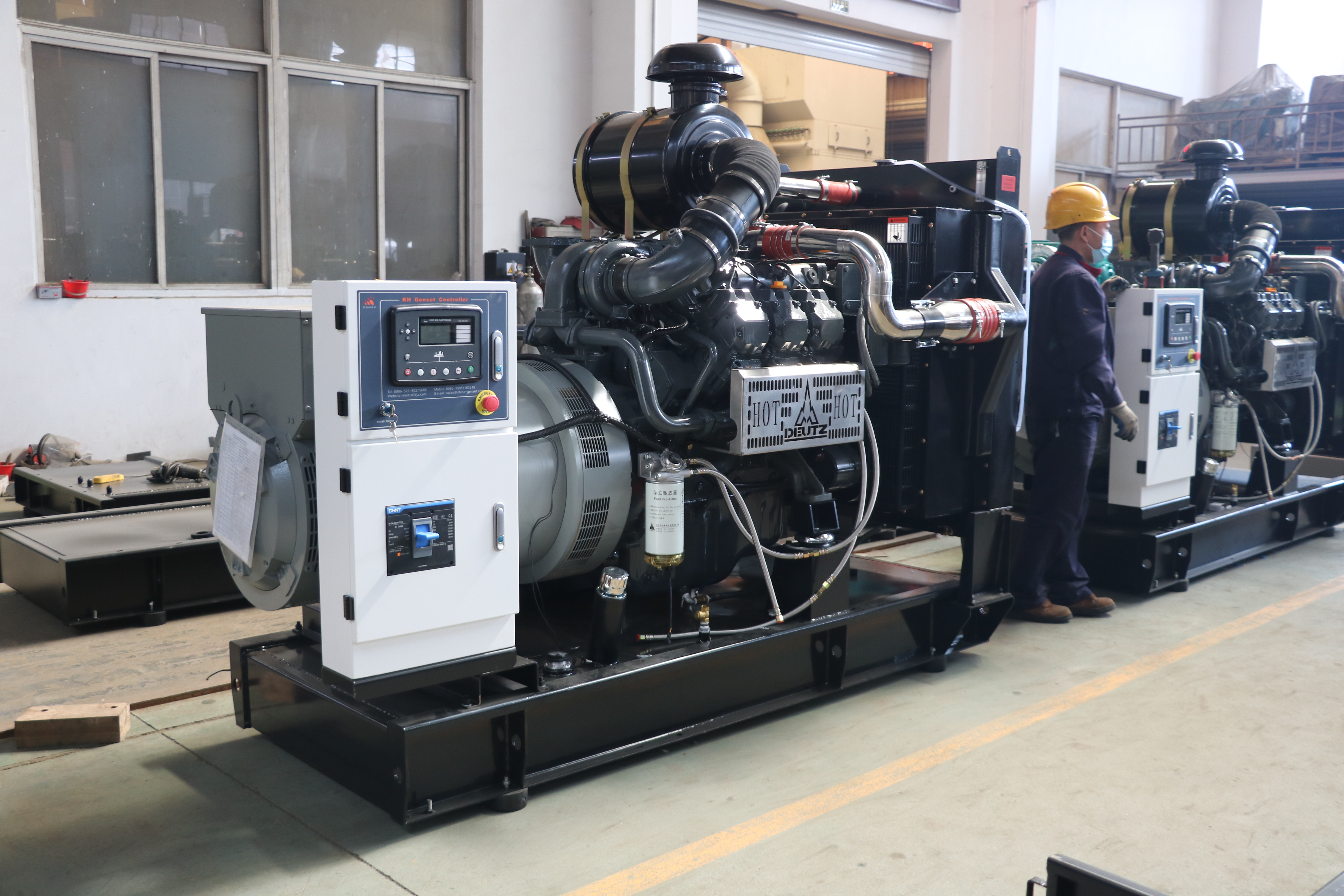

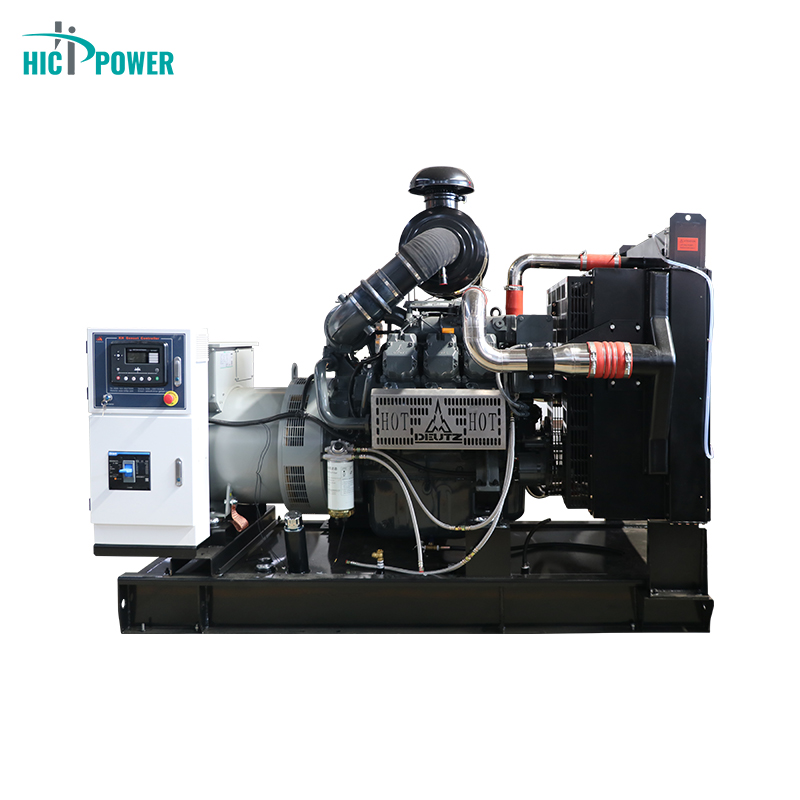

50kVA To 2500kVA Industrial Deutz Diesel Generator Set

DEUTZ diesel engine is based on German thchnique,combined the characteristics of compact structure,big power, economic, environmental adaptability and high reliability together.

Now there are more than 400 thousand DUETZ diesel generator sets running reliably all over the world, won the trust by the most users.The outatanding characteristics of DEUTZ diesel generator are low fuel consumption, small size,light weight, high Reliability and durability, slight vibration,low-noise, convenient using and maintenance, which is a successful example of Sino-German cooperation.

1. Operating standard environmental conditions for generator sets

Atmospheric pressure of 100kPa; The ambient temperature is 25 ℃; Relative humidity of 30%; Under the above conditions, when the fuel quality meets the technical specifications, the generator set can achieve the rated load output.

2. Standards and specifications followed in product design

Including but not limited to the following standards and specifications: ISO9001, GB/T 2820-2009, JB/T 10303-2001, GB/T 15548-2008, GB/T 20136-2006, etc.

3. When the generator set is in standby mode

When the generator set is in long-term standby, it can be manually started regularly and run without load to self check its starting performance.

4. Fuel applicability

In summer, 0-grade light diesel should be used, while in winter, -10 grade, -20 grade, or -35 grade light diesel should be selected according to the regional climate conditions.

5. Lubricating oil system

The lubrication system of the generator set is a closed self circulating lubrication system. The engine is equipped with an oil tank (oil pan), oil transfer pump, manual/electric pre supply oil pump, oil filter, oil cooler, etc.

6. Cooling system

Cooling water should be selected as slightly alkaline clean water and should not contain corrosive compounds. The main indicators are as follows: hardness of 0.7-5.3mol/L, chloride ion content<150mg/L, pH value of 6-8.5. Antifreeze should be used in winter.

7. Start the system

The generator set is started by a DC motor, with a working power supply of 24V DC. The battery is equipped with an automatic charging device, which can automatically charge it to ensure that the battery has sufficient power.

Haichai Power Technology (Jiangsu) Co., Ltd. was established in 2015, backed by 10 years of comprehensive experience in the production, manufacturing, and sales of power generators.

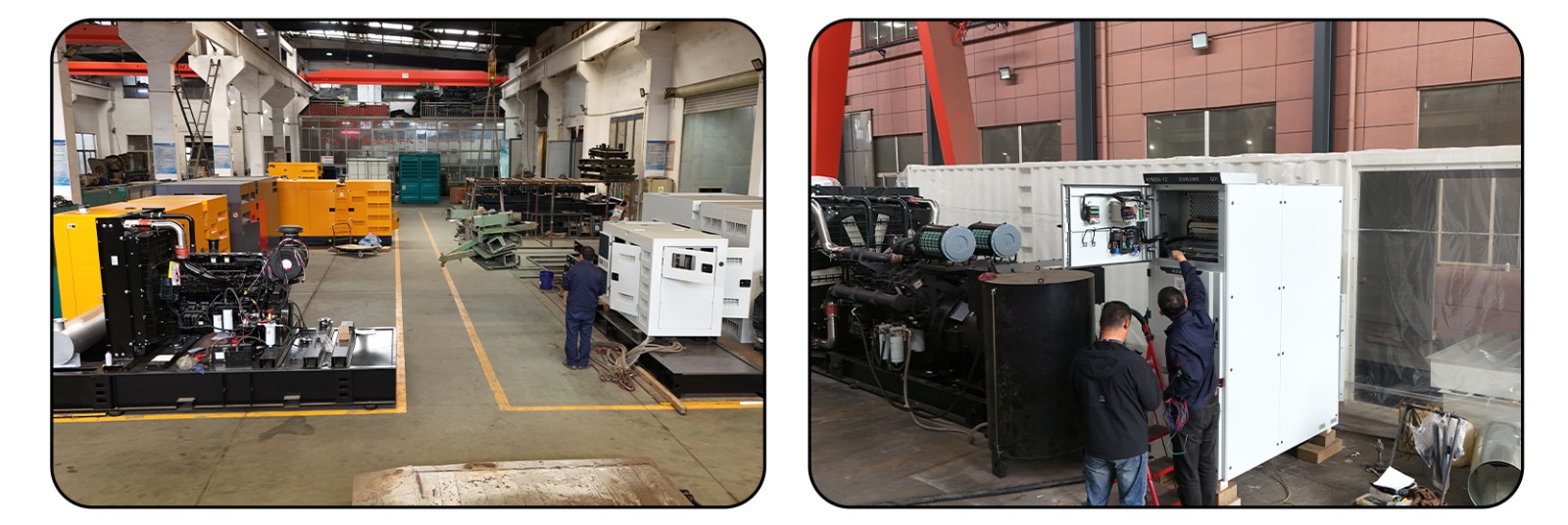

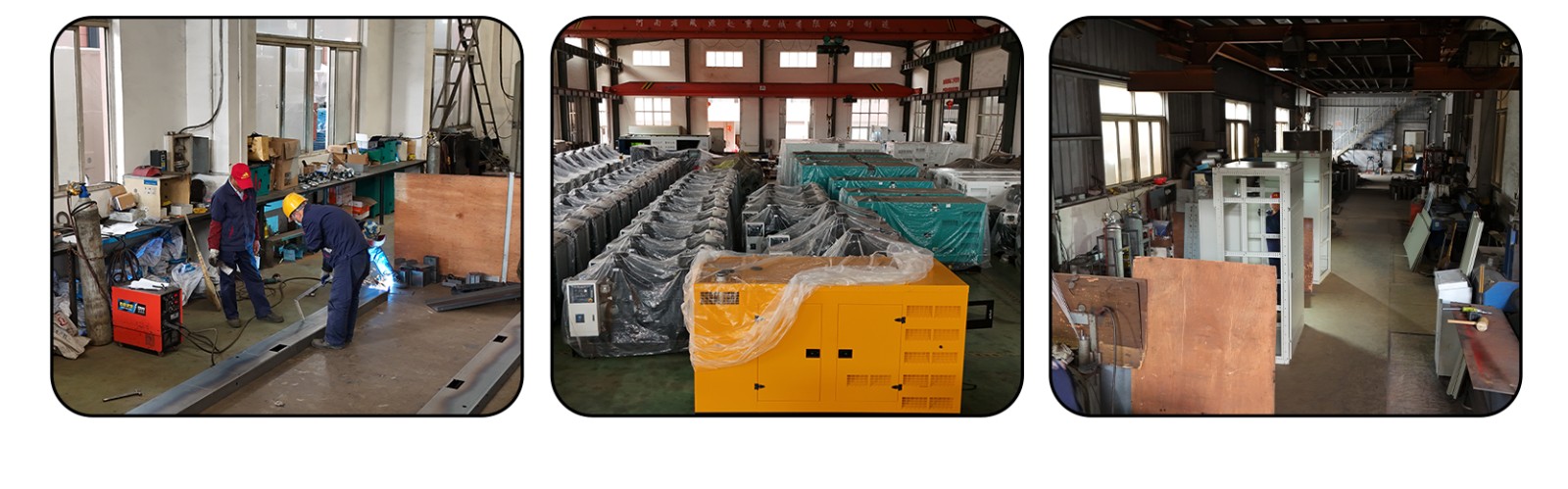

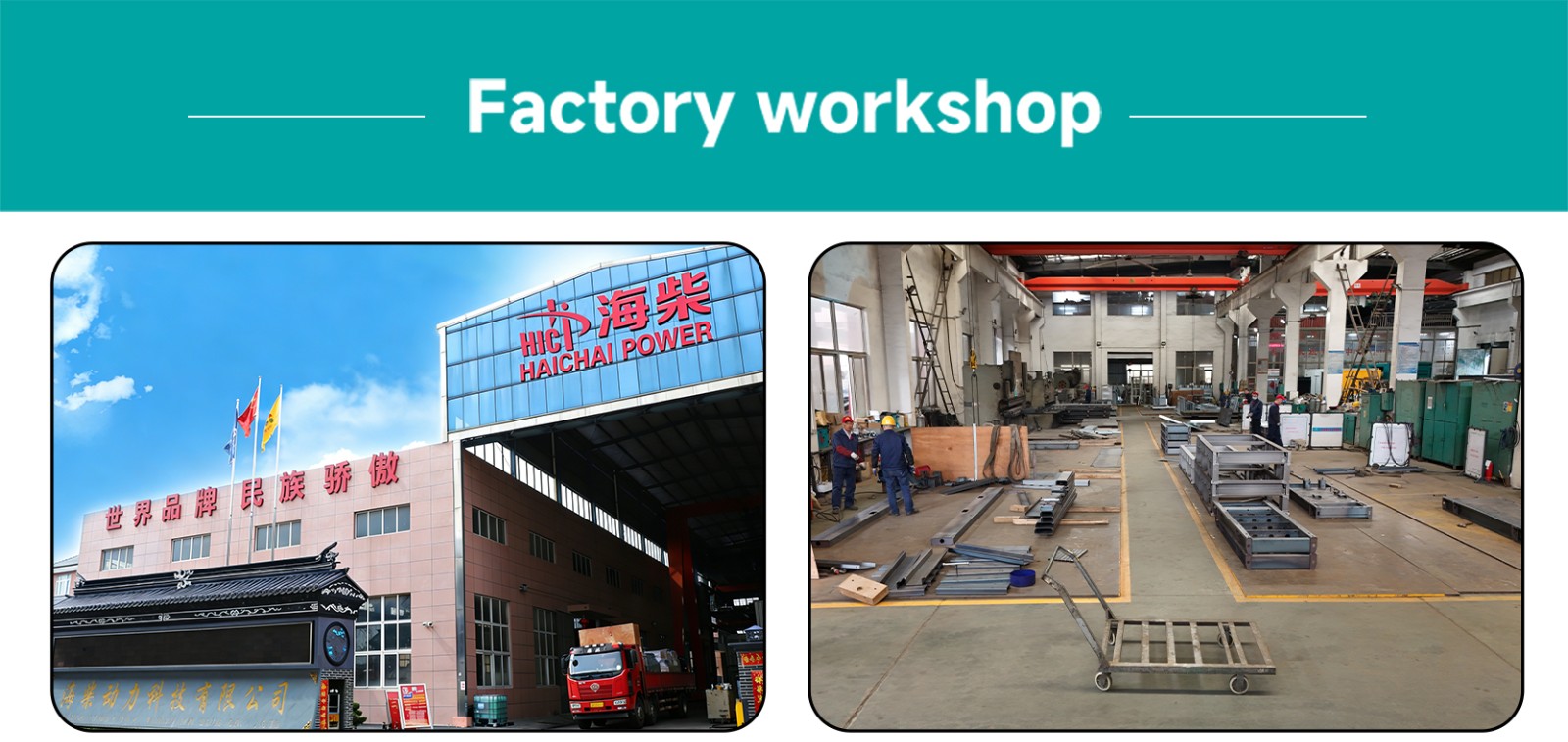

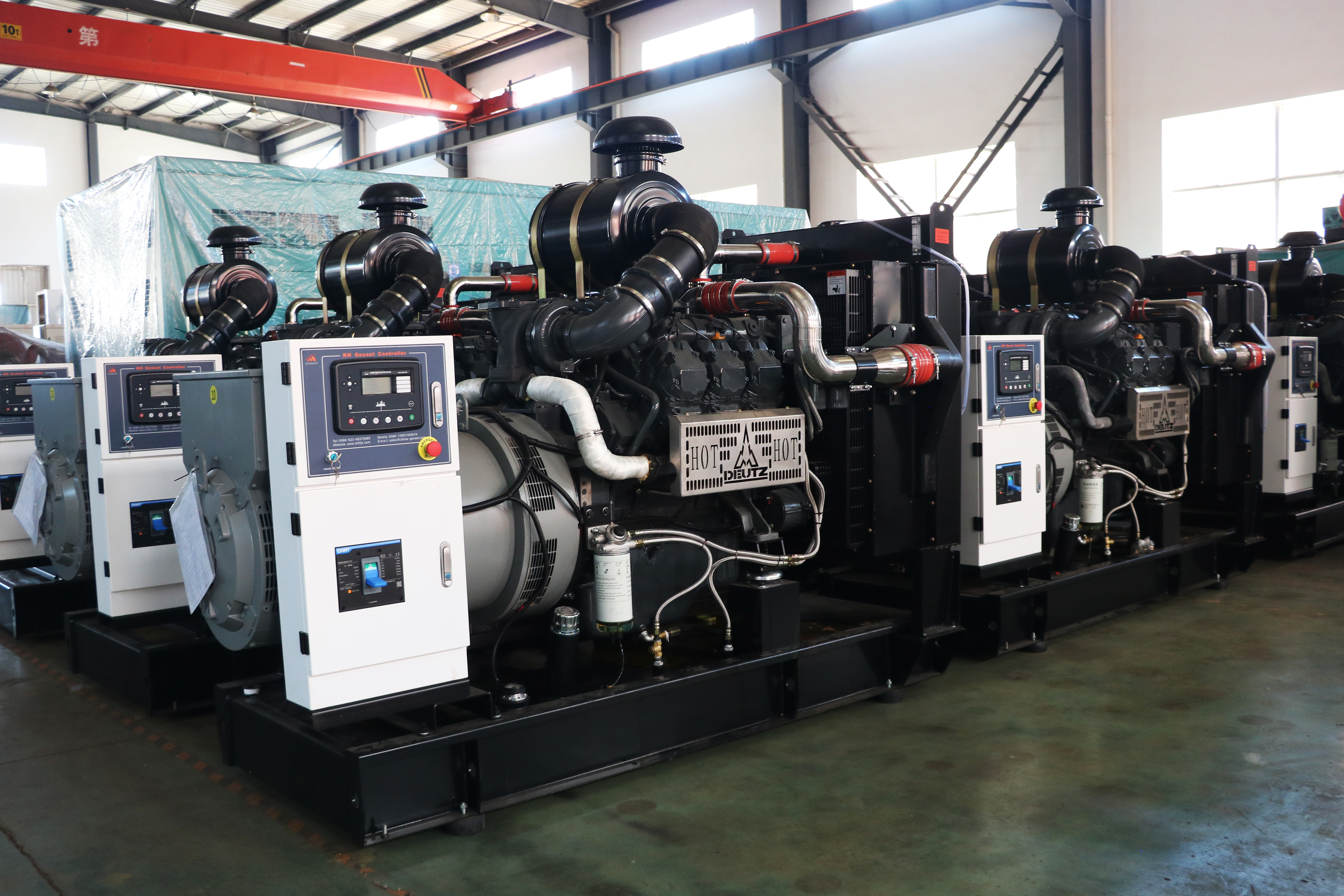

Our factory covers an area of over 12,000 square meters, with an annual production capacity of more than 3,000 generator sets. We are equipped with 10 sets of production equipment, 5 dedicated production lines, and a team of over 200 skilled employees.

Focusing on the generator industry for 20 years, the company integrates the research and development, production, sales, leasing, maintenance, and after-sales of generator sets. The core backbone of the company has been in the industry for over 10 years and has a better understanding of the needs of various environments and working conditions.

All devices sold enjoy a one-year warranty period, and can be flexibly purchased to extend the warranty period. We provide customers with advanced technologies and tools such as engineering software, potential failure modes, and diagnostic analysis for free.

Q: Can the equipment be installed under hot weather?
